drylin® lead screw nuts in 5 materials
Speed – high loads – temperature resistance – FDA
compliant – mass production ...
For every technical requirement, the drylin® lead
screw nuts are available from now on from the full
range. The full range includes lead screw nuts from 5
lubricant free iglidur® high-performance polymers, in
trapezoidal and high helix thread, cylindrical design or
flange options. The ideal nut and lead screw for every
application.

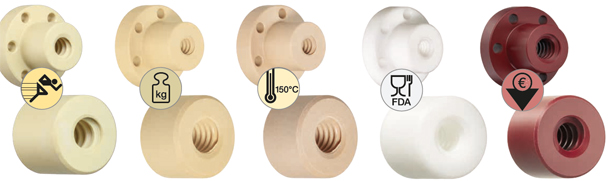

iglidur® J: high efficiency for high speeds
iglidur® W300: highly versatile and wear resistant
iglidur® J350 for temperatures up to +150 °C
iglidur® A180: FDA-compliant for food/pharmaceutical
iglidur® R: the low-priced option for high quantities
Typical applications:Adjustments of all types (formats, height/sides/alley adjustments), linear drives, …
Material data
General features |
Unit | iglidur® A180 |
iglidur® J |
iglidur® J350 |
iglidur® R |
iglidur® W300 |
|---|---|---|---|---|---|---|
| Density | [g/cm3] | 1,46 | 1,49 | 1,44 | 1,39 | 1,24 |
| Colour | white | yellow | yellow | red | yellow | |
| Max. moisture absorption at 23 °C and 50 %r. h. |
[weight-%] | 0,2 | 0,3 | 0,3 | 0,2 | 1,3 |
| Mechanical properties | ||||||
| Tensile strength, +20°C | [MPa] | 88 | 73 | 55 | 70 | 125 |
| compressive strength | [MPa] | 78 | 60 | 60 | 68 | 61 |
| Max. recommended surface pressure +20°C | [MPa] | 3,5 | 4,0 | 3,0 | 3,0 | 5,0 |
| Thermal properties | ||||||
| Max. long term application temperature | [°C] | +90 | +90 | +150 | +90 | +90 |
| Electrical properties | ||||||
| Specific forward resistance | [Ωcm] | > 1012 | > 1013 | > 1013 | > 1012 | > 1013 |
| surface resistance | [Ω] | > 1011 | > 1012 | > 1010 | > 1012 | > 1012 |
Delivery program:
Combine more … in the thread area
drylin® lead screw nuts in 5 materials
drylin® - trapezoidal lead screw nut - WSL;, JSLM, J350SLM, RSLM and A180SLM
igus® offers a wide selection of suitable trapezoidal leadscrew spindles.
drylin® trapezoidal leadscrew nut WFRM, JFRM, J350FRM, RFRM and A180FRM
igus® offers a wide selection of suitable trapezoidal leadscrew spindles.
drylin® - trapezoidal leadscrew nut - WFLM, JFLM, J350FLM, RFLM und A180FLM
igus® offers a wide selection of suitable trapezoidal leadscrew spindles.
drylin® lead screw nuts with spanner flatiglidur® J, W300, J350, A180, R
drylin® lead screw nuts with keyways – fully secured
more combinations… in the leadscrew area iglidur® J, W300, J350, A180, R
Speed - high loads - temperatureresistant - FDA-compliant - large series … for every technical requirements are now available drylin® nut from the full range available.
Delivery
from stock/ex stock
