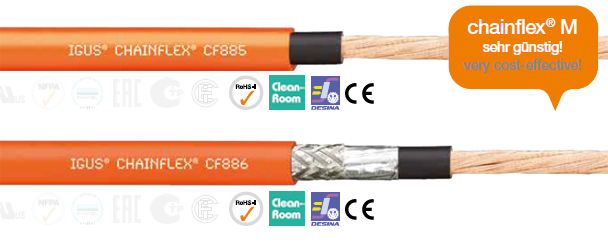

chainflex® M PVC Motor single cores for e-chains®. Very cost-effective.
For flexing applications
Shielded and unshielded
Without influence of oil
Preferably indoor applications
Especially for unsupported applications
Typical application areas:Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
Chainflex® CF885 motor cable PVC
| Order no. | cross section, number of cores [mm2] |
Outside Ø approx. [mm] |
Copper index [kg/km] |
weight [kg/km] |
|||
|---|---|---|---|---|---|---|---|
| CF885.60.04 | - | 4 G 6,0 | 14 | 254 | 374 | Upon request |  |
| CF885.100.04 | - | 4 G 10 | 16.5 | 423 | 588 | Upon request | |
| CF885.160.04 | - | 4 G 16 | 19.5 | 676 | 914 | Upon request | |
| CF885.15.04 | - | 4G1,5 | 8 | 64 | 99 | Upon request | |
| CF885.25.04 | - | 4G2,5 | 8 | 106 | 160 | Upon request | |
| CF885.40.04 | - | 4G4,0 | 11.5 | 169 | 246 | Upon request | |
| CF885.40.01 | NEW | 1 x 4,0 | 8 | 43 | 79 | Upon request | |
| CF885.60.01 | NEW | 1 x 6,0 | 86 | 64 | 103 | Upon request | |
| CF885.100.01 | NEW | 1 x 10,0 | 10 | 106 | 157 | Upon request | |
| CF885.160.01 | NEW | 1 x 16,0 | 11.5 | 169 | 274 | Upon request | |
| CF885.250.01 | NEW | 1 x 25,0 | 13 | 264 | 352 | Upon request | |
| CF885.350.01 | NEW | 1 x 35,0 | 15.5 | 370 | 464 | Upon request | |
| CF885.500.01 | NEW | 1 x 50,0 | 17.5 | 528 | 690 | Upon request | |
| CF885.700.01 | NEW | 1 x 70,0 | 19.5 | 740 | 926 | Upon request | |
| CF885.950.01 | NEW | 1 x 95,0 | 21 | 1004 | 1192 | Upon request | |
| More about selected part: | |||||||
Sample request
Cycle life
QuickPin
PDF
Quote request
Price list
myCatalog
|
|||||||
Chainflex® CF885 motor cable PVC
| Order no. | cross section, number of cores [mm2] |
Outside Ø approx. [mm] |
Copper index [kg/km] |
weight [kg/km] |
|||
|---|---|---|---|---|---|---|---|
| CF886.15.04 | - | (4G1,5)C | 9.5 | 83 | 132 | Upon request | |
| CF886.25.04 | - | (4G2,5)C | 10.5 | 130 | 196 | Upon request | |
| CF886.40.04 | - | (4G4,0)C | 12 | 198 | 276 | Upon request | |
| CF886.60.04 | - | (4 G 6,0)C | 14.5 | 297 | 400 | Upon request | |
| CF886.100.04 | - | (4 G 10)C | 17 | 474 | 601 | Upon request | |
| CF886.160.04 | - | (4 G 16)C | 20.5 | 745 | 908 | Upon request | |
| CF886.40.01 | NEW | (1 x 4,0)C | 8 | 60 | 104 | Upon request | |
| CF886.60.01 | NEW | (1 x 6,0)C | 8.5 | 81 | 129 | Upon request | |
| CF886.100.01 | NEW | (1 x 10,0)C | 10 | 129 | 198 | Upon request | |
| CF886.160.01 | NEW | (1 x 16,0)C | 11.5 | 198 | 274 | Upon request | |
| CF886.250.01 | NEW | (1 x 25,0)C | 13 | 299 | 399 | Upon request | |
| CF886.350.01 | NEW | (1 x 35,0)C | 15.5 | 421 | 559 | Upon request | |
| CF886.500.01 | NEW | (1 x 50,0)C | 17.5 | 589 | 746 | Upon request | |
| CF886.700.01 | NEW | (1 x 70,0)C | 19.5 | 811 | 991 | Upon request | |
| CF886.950.01 | NEW | (1 x 95,0)C | 21 | 1075 | 1257 | Upon request | |
| More about selected part: | |||||||
|
Sample request
Cycle life
QuickPin
PDF
Quote request
Price list
myCatalog
|
|||||||
Delivery
in 12 weeks
on stock:
CF885.100.01
CF885.160.01
CF886.100.01
CF886.160.01
