Manual clamp for drylin® W size 06

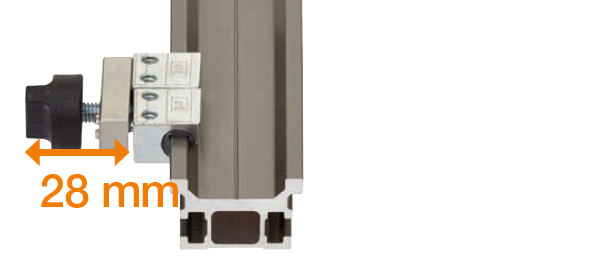

The hand clamping function for installation size 06 completes the scope of delivery of the drylin® W linear system. In many applications, this size is impressive with a compact design. The manual clamp is available from stock both as a single bearing housing or pre-assembled as a linear carriage.
Clamping by friction locking
Suitable for drylin® W single and double shaft profile size 06
Pre-assembled carriage available in 60/80/100 mm lengths
Including lubricant free liner made of iglidur® J200
Also suitable for camera slide carriage
Typical applications:Handling, camera technology, sensor adjustment, …
| Part Number | Mk | Vx | Kx | Vz | Kz | Dk | min. holding strength* | min. tightening torque | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
 WHKAQ-06 (1) |
NEW | M6 | 34.5 | 21,5 | 8 | 28 | 20 | 30 | 0.8 | ||
 WHKA-10 (1) |
- | M6 | 50 | 33 | 8 | 28 | 20 | 30 | 0.8 | ||
| WHKA-AL-10 (1) |
NEW | M6 | 50 | 33 | 8 | 28 | 20 | 30 | 0.8 | ||
| WHKA-16 (1) |
- | M8 | 72 | 41 | 10 | 31 | 28 | 60 | 1.5 | ||
| WHKA-AL-16 (1) |
NEW | M8 | 72 | 41 | 10 | 31 | 28 | 60 | 1.5 | ||
| WHKA-20 (1) |
- | M8 | 90 | 62 | 10 | 31 | 28 | 70 | 1.5 | ||
| WHKA-AL-20 (1) |
NEW | M8 | 90 | 62 | 10 | 31 | 28 | 70 | 1.5 | ||
| WHKA-25 (1) |
NEW | M8 | 96 | 65 | 12 | 31 | 28 | 70 | 1.5 | ||
