drylin® E gantries, assembled from stock

… surface, line, room …

Gantries are a combination of several linear axes to implement a multi-dimensional motion. For the most varied tasks igus® offers gantries as flat, line, and room gantry. igus® gantries contain preconfigured drylin® linear modules/axes with NEMA stepper motors and all components necessary for own construction.

Drive: toothed belt and toothed rack

Portal construction kits from stock

Quick assembly

Defined stroke lengths

Base drylin® toothed belt axis ZLW, cantilever axis GRW

Typical applications:Automation, measurement stations, positioning

Available from stock

Demonstrations of the drylin® gantry program from igus®

line gantry:

Application examples:

Pick and Place

Identification applications

Sorting plants

Identification in the micro electronics, medical technology

workspace:
500 x 100 mm

A = Loss of stroke by limit switch: 20 mm
B = Loss of stroke by limit switch: 3 mm

Benefits:

Easy installation

Initiator assembly over T-slot for complete length of profile

Construction kit with cantilever axis

Everything from a single source

When to use igus® line gantry:

For loads up to 2,5 [kg]

at precision requirements up to 0,2 [mm]

at speeds up to max. 1 [m/s]

Part number
DLE-LG-0001	Version of stepper motors with encoder	Upon request
More about selected part:
3D-CAD Sample request Experts Quote request Price list myCatalog

Surface gantry:

Application examples:

Measurement and testing automation

Identification applications

Measurement and testing technology

Workspace:
300 x 300 mm
Benefits:

Easy installation

Initiator assembly over T-slot for complete length of profile

Construction kit with cantilever axis

Everything from a single source

When to use igus® line gantry:

For loads up to 30 [kg]

at precision requirements up to 0,5 [mm]

at speeds up to max. 1,5 [m/s]

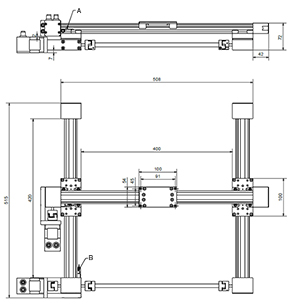

DLE-FG-0002
A = Loss of stroke by limit switch: 20 mm
B = Loss of stroke by limit switch: 20 mm

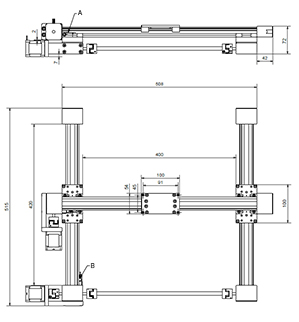

DLE-FG-0001
A = Loss of stroke by limit switch: 20 mm
B = Loss of stroke by limit switch: 20 mm

Part number
DLE-FG-0002	Version of stepper motors with stranded wires (low cost)	Upon request
DLE-FG-0001	Version of stepper motors with encoder	Upon request
More about selected part:
3D-CAD Sample request Experts Quote request Price list myCatalog

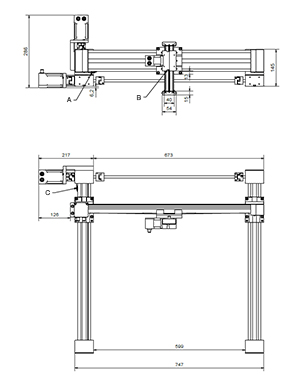

Room gantry:

Application examples:

Measurement and testing automation

Handling- and assembly technology

Identification in the micro electronics, medical technology

Small parts handling tasks

Easy handling tasks

Workspace:
500 x 500 x 100 mm

A = Loss of stroke by limit switch: 20 mm
B = Loss of stroke by limit switch: 3 mm
C = Loss of stroke by limit switch: 20 mm

Benefits:

Easy installation

Initiator assembly over T-slot for complete length of profile

Construction kit with cantilever axis

Everything from a single source

When to use igus® room gantry:

For loads up to 2,5 [kg]

at precision requirements up to 0,8 [mm]

at speeds up to max. 0,5 [m/s]

Part number
DLE-RG-0001	Version of stepper motors with encoder	Upon request
More about selected part:
3D-CAD Sample request Experts Quote request Price list myCatalog

More information:

DryLin® ZLW

drylin® E gantry Configure individually and inquire
