drylin® linear module SLT in new size 15
... slim line ... iF Award …
Very low profile, lateral lead screw positioning and an elegant design are just a few of the reasons why the drylin® linear module SLT received the iF Award 2014. From a technical perspective, the system impresses with a ball-bearing- mounted lead screw drive and trapezoidal or high helix threads for motorised and manual operation. The new size 15 is based on the drylin® T miniature linear guide system in size 15 with the adjustable bearing carriage TWE-04-15.
Extremely flat design due to lateral lead screw drive
Lubrication free, corrosion resistant and light-weight
Variable lead screw pitch Tr12x3, Tr12x6P3, Sg12x25
Adjustable drylin® T miniature guide carriage TWE-04-15
Lead screws with left or right mounted option
Typical applications:Mechanical engineering, medical technology, laboratory automation

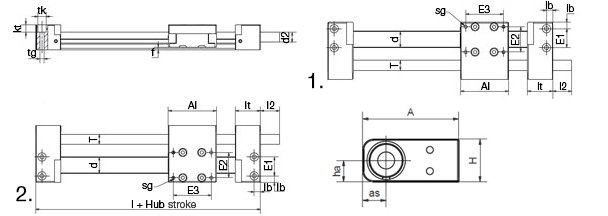

1. Drive shaft right
2. Drive shaft left
Dimensions [mm]
| Ordering number | Stroke length | Weight | max. stat.carrying capacity | max. rpm | Max. speed | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| [kg] | additional (per 100 mm) |
axial [N] | radial [N] | [1/min.] | [m/min.] | |||||
| SLT-BB-0412 | - | 300 | 0.15 | 0.06 | 100 | 200 | 1000 | 1.5 | Upon request |  |
| SLT-BB-0415 | NEW | 600 | 0.4 | 0.12 | 200 | 400 | 1000 | 3 | Upon request | |
| More about selected part: | ||||||||||
3D-CAD
Sample request
Experts
Quote request
Price list
myCatalog
|
||||||||||
| Ordering number | A | Al | H | E1 | E2 | E3 | L | L2 | d2 | ha | sg | tk | kt | tg | f | lb | lt | d | T* | as | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLT-BB-0412 | - | 45 | 38 | 20 | 15 | 20 | 30 | 78 | 15 | - | 10 | M3-7 | 6.5 | 6 | M3 | 2.2 | 5 | 20 | 13 | TR 08x1,5 | 11 | Upon request | |
| SLT-BB-0415 | NEW | 58 | 45 | 30 | 19 | 25 | 35 | 89 | 17 | 12 | 15 | M3-13 | 8 | 4.5 | M5-15 | 2.8 | 6,5 | 22 | 17 | TR12x3 | 16 | Upon request | |
| More about selected part: | |||||||||||||||||||||||
|
3D-CAD
Sample request
Experts
Quote request
Price list
myCatalog
|
|||||||||||||||||||||||
Order key
SLT-BB-0412-ER-S0015RG-xxx
SLT-BB-0412-ER-S0015RG-xxx
stroke length in mm
lead screw pin
G = pin with thread
thread
R=right
lead screw pitch
lead screw
steel or stainless steel
direction lead screw
R = right (standard)
L = left
adjustable carriage TWE (standard)
size 0412/0415
design
BB = with ball bearing (standard)
Type
Delivery time 3-8 days
