Save more assembly time
In recent years, igus® has already presented tools to open and close our large E4 and E2/000 series even faster. All our e-chains® can also be opened with a simple screw driver. Not only our new tools, but also the tried and true ones are a big help, especially for frequent users and for cases involving e-chains® with many separators.
Especially in areas diffi cult to access mounting is simplified
Big savings in assembly time

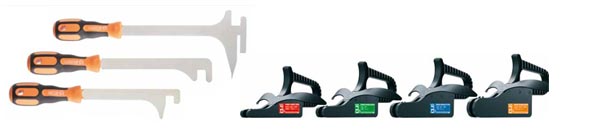

| chain opener | for uses | Suitable for series | Suitable for widths | ||
|---|---|---|---|---|---|
 908.254.1400 |
opens the entire e-chain® | 1400/1450/1500 | 020/038/050/ 068/080/100/125 |
Upon request |  |
| 908.254.2400 |
opens the entire e-chain® | 2400/2450/2500 | 05/07/09 | Upon request | |
| 908.254.2600 |
opens the entire e-chain® | 2600/2650/2700 | 06/07/09/10 | Upon request | |
| 908.254.3400 |
opens the entire e-chain® | 3400/3450/3500 | 050/075/100/115 | Upon request | |
| MAT0051121 |
lever open upper crossbar width | E4.56/E4.80/E4.112/ 1640/14040/14550/ 15050/E6.80 |
Any width | Upon request | |
| MAT0051122 |
lever open lower crossbar width | E4.56/E4.80/E4.112/ 1640/14040/14550/ 15050/E6.80 |
Any width | Upon request | |
| MAT0051123 |
lever open | 800/E4.162 | - | Upon request | |
| MAT0051124 |
Cross bars | E4.56/E4.80/E4.112/ 1640/14040/14550/ 15050/E6.80 |
- | Upon request | |
