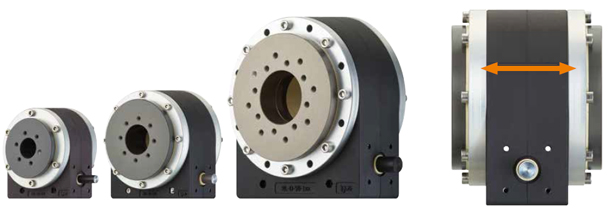

robolink® D robot joint with two PRT slewing ring bearings
Slewing ring bearing (iglidur® PRT) in a plastic housing.
The main component is a worm gear. As a result
the central through hole remains free for the insertion
of, for example, cables. The articulated joints can be
ordered with or without a motor.
Self-locking drive
Light, compact and lubricant free
Construction kit: plastic housing + worm wheel made of iglidur® J + worm shaft + PRT slewing ring bearing + axial roller bearings + radial bearings + VA-screws
Adaptable to various motors, standard option: NEMA17 / 23XL stepper motors
INI kit for zero position optionally adaptable
3 options:
Standard: 1 aluminium PRT (PRT-02-xx-AL), aluminium worm shaft (AL hard-anodised)
Low cost: 1 Low cost PRT (PRT-02-xx-LC), worm shaft made of plastic RN33
High Performance: 1 PRT type 01 (PRT-01-xx), aluminium worm shaft (AL hard-anodised)
Technical data
| Size 20 | Size 30 | Size 50 | |
|---|---|---|---|
| weight [g] | 410 | 730 | 1400 |
| Reduction gearing | 38:1 | 50:1 | 48:1 |
| Axis center distance [mm] | 31 | 40 | 63 |
| Efficiency | > 0,25 | > 0,25 | > 0,25 |
| Breakaway torque [cNm] | < 5 | < 7 | < 10 |
iglidur® PRT on both sides
| Part Number | ØT | ØS | ØP | ØF | L1 | L2 | B1 | B2 | H1 | G1 | G2 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RL-D-20-101-38-01000 | Standard | 20 | 8 | 60 | 31 | 80 | 12 | 35 | 10.5 | 90 | M4 | 3 x M5 | Upon request |  |
| RL-D-30-101-50-01000 | Standard | 30 | 10 | 80 | 42.5 | 100 | 12 | 345 | 12.5 | 110 | M4 | 4 x M5 | Upon request | |
| RL-D-50-101-48-01000 | Standard | 50 | 15 | 120 | 65 | 150 | 13 | 60 | 13 | 170 | M6 | 8 x M6 | Upon request | |
| RL-D-20-101-38-03011 | - | 20 | 8 | 60 | 31 | 80 | 12 | 35 | 10.5 | 90 | M4 | 3xM5 | Upon request | |
| RL-D-30-101-50-03011 | - | 30 | 10 | 80 | 42.5 | 100 | 12 | 45 | 12.5 | 110 | M4 | 4xM5 | Upon request | |
| RL-D-50-101-48-03011 | - | 50 | 15 | 120 | 65 | 150 | 13 | 60 | 13 | 170 | M6 | 8xM6 | Upon request | |
| RL-D-20-101-38-01033 | High Performance | 20 | 8 | 60 | 31 | 80 | 12 | 35 | 16 | 90 | M4 | 6 x M6 | Upon request | |
| RL-D-30-101-50-01033 | High Performance | 30 | 10 | 80 | 42.5 | 100 | 12 | 45 | 19.5 | 110 | M4 | 8 x M4 | Upon request | |
| RL-D-50-101-48-01033 | High Performance | 50 | 15 | 120 | 60 | 150 | 13 | 60 | 21.5 | 170 | M6 | 8 x M6 | Upon request | |
| More about selected part: | ||||||||||||||
