New dimension for ready-to-connect drylin® SAW linear unit
Typical applications:Packaging, automation, mechanical engineering

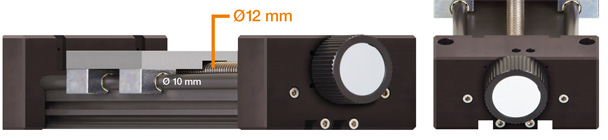

The new installation size of the compact linear lead screw units has a Ø12 mm lead screw compared to its slimmer sibling SAW-1040. This increases the performance in terms of precision, smoothness and load bearing.
Compact design
Special fastening material
Lead screw mounted on ball bearings
Lubrication-free linear guide
Trapezoidal or high helix lead screw available: Tr12x3 / Tr12x6 / Sg12x25
Typical applications:Packaging, automation, mechanical engineering
)
| Ordering number | Max. stroke length | shaft weight | Max. stat. load capacity | |||
|---|---|---|---|---|---|---|
| Length [mm] | [kg] | Additional (per 100 mm) | axial [N] | radial [N] | ||
 SAW-0630 |
- | 300 | 0.5 | 0.1 | 100 | 400 |
| SAW-1040 |
- | 500 | 1 | 0.1 | 500 | 2000 |
 SAW-1080 |
NEW | 750 | 1.9 | 0.2 | 750 | 2000 |
| SAW-1660 |
- | 750 | 2.8 | 0.6 | 750 | 3000 |
| More about selected part: | ||||||
3D-CAD
Sample request
Experts
PDF
Quote request
Price list
myCatalog
|
||||||

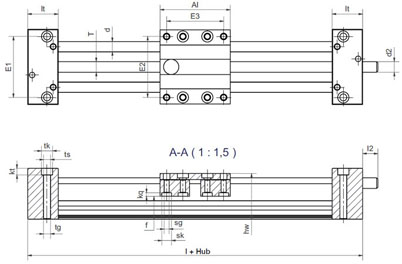

| Ordering number | A | Al | H | E1 | E2 | E3 | l | lc | f | lt | tk | ts | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| -0,3 | -0,3 | ±0,15 | ±0,15 | ±0,15 | ±0,1 | ||||||||
| SAW-0630 |
54 | 60 | 32 | 40 | 45 | 51 | 112 | 92 | 30 | 13.5 | 26 | 11 | 6.6 |
| SAW-1040 |
74 | 69 | 50 | 60 | 60 | 56/87/137 | 129 | 91 | 45 | 22.5 | 30 | 11 | 6.8 |
| SAW-1080 |
108 | 100 | 58 | 94 | 94 | 87 | 163 | 131.5 | 49 | 22.5 | 31.5 | 11 | 6.8 |
| SAW-1660 |
104 | 150 | 77 | 84 | 86 | 132 | 220 | 175 | 72 | 38.5 | 35 | 15 | 9 |
| More about selected part: | |||||||||||||
|
3D-CAD
Sample request
Experts
PDF
Quote request
Price list
myCatalog
|
|||||||||||||
| Ordering number | tg | kt | sk | sg | kq | d | T | l2 | d2 | d2 | ha |
|---|---|---|---|---|---|---|---|---|---|---|---|
| -0,3 | standard | Alternativ | |||||||||
| SAW-0630 |
- | 20 | 0 | 5 | 10 | 5 | TR8x1,5 | 15 | TR8x1.5 | - | 21.5 |
| SAW-1040 |
M8 | 6.4 | 9.5 | M6 | 3.5 | 10 | TR10x2 | 17 | TR10x2 | 6h9 | 35.5 |
| SAW-1080 |
M8 | 18 | 9.5 | M6 | 3.5 | 10 | Ø10 | 17 | Ø10 | - | 37.5 |
| SAW-1660 |
M10 | 8.6 | 11 | M8 | 5.5 | 16 | TR14x4 | 20 | TR14x4 | 8h9 | 59 |
| More about selected part: | |||||||||||
|
3D-CAD
Sample request
Experts
PDF
Quote request
Price list
myCatalog
|
|||||||||||
Available ex stock
